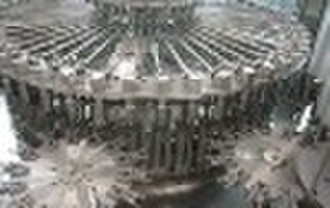

Automatic water filling machine

3 in 1 filling machine: The equipment is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine. The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface normal pressure filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180 along the conveying rail. There is once time of internal and external washing, the efficiency of bottle washing is high. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically. The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently. Components:Washing- filling -capping system: 1 suitValue washing system: 1suitEmpty bottle stop system when machine stop: 1 suitBottle control system when machine stop: 1 suitUV sterilization lamp: 2 pcsCrawl device: 1 pcOperation1, Worker put bottles into bottle unscrambler; Unscrambler will bring bottles into 3 in 1 machine2, Worker put caps into cap elevtor; Elevator bring caps into 3 in 1 machineElectrical apparatusPLC/ transducer/ touch screen: MitsubishiContactor/ air switch/ stabilized voltage supply: SchneiderPhotoelectricity/ proximity switch: AutonicsCylinder: AirtackMotor: AB motorModelYFCY24-24-8Capacity(B/H)12000Bottle sizeNeck:φ50-100mm Height:150-320mmWater pressure0.18-0.25MpaWater consumption(kg/h)1500Washing station6Dripping station5Filling precision+5MMAir pressure0.5MpaAir consumption0.5 m³/minPower(kw)5Weight(kg)3000Dimension(L*W*H)2560*1860* 2100 mm
